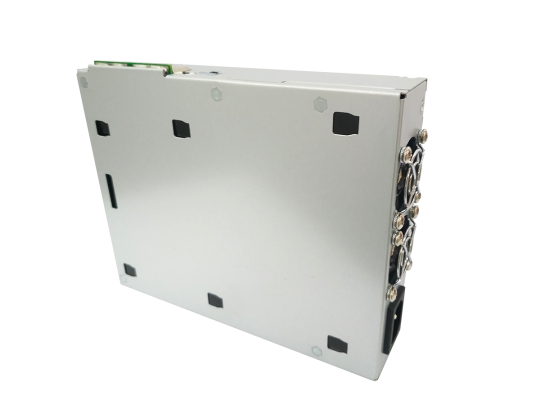

APW8_8V-9.2V EMC
7512 €
0 €
Описание
| APW8 | ||
| OUT1 | DC Voltage | 8V-9.2V |
| Rated Current(220V input) | 190A | |
| Rated Power (220V input) | 8V/1550W - 9.2V/1800W | |
| Ripple & Noise | <1% | |
| Source Regulation | <1% | |
| Load Regulation | <1% | |
| Setup, Rise Time | <2S | |
| Power off Protection Trip Time | >10mS | |
| OUT2 | DC Voltage | 12.3V |
| Rated Current(220V input) | 5A | |
| Ripple & Noise | <1% | |
| Voltage Accuracy | 12.2V-12.4V | |
| Source Regulation | <1% | |
| Load Regulation | <1% | |
| Setup, Rise Time | <2S | |
| Power off Protection Trip Time | >10mS | |
| Input | Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz | |
| Power Factor | >0.99(full load) | |
| Leakage Current | <1.5mA（220V 50Hz） | |
| Protection | Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes | |
| Output Overcurrent | 95-130A | |
| Overheat Protection | Yes | |
| Environment | Operating Temperature | -20-60℃ |
| Operating Humidity | 20%-90%RH(non-condensing) | |
| Altitude | < 2000m | |
| Structure | Dimensions | 204.8*157*42.5mm |
| Weight | 1.7kg | |
| Cooling Mode | force-air cooling | |
| Noise | 67dBA | |
